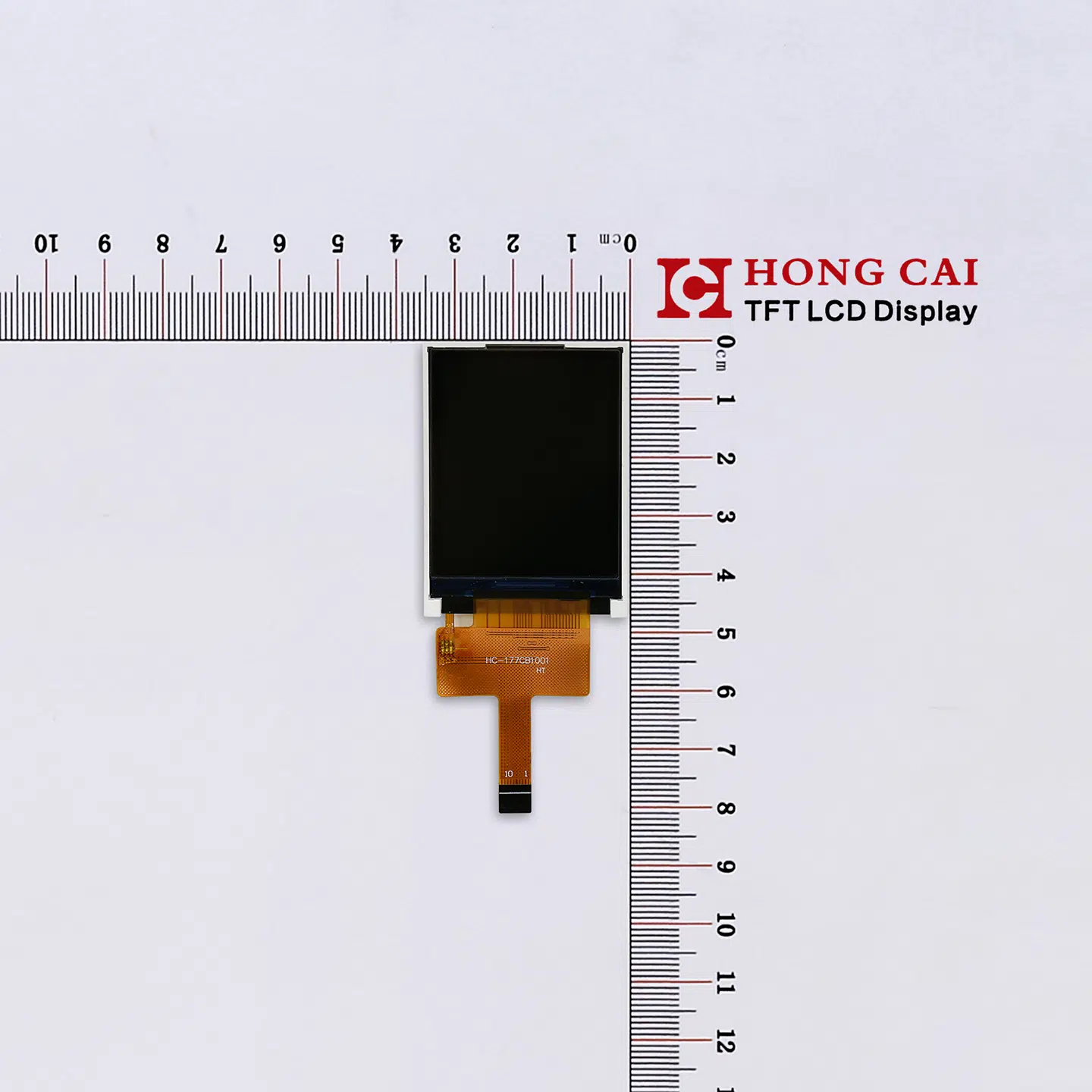

1.77-inch SPI LCD display

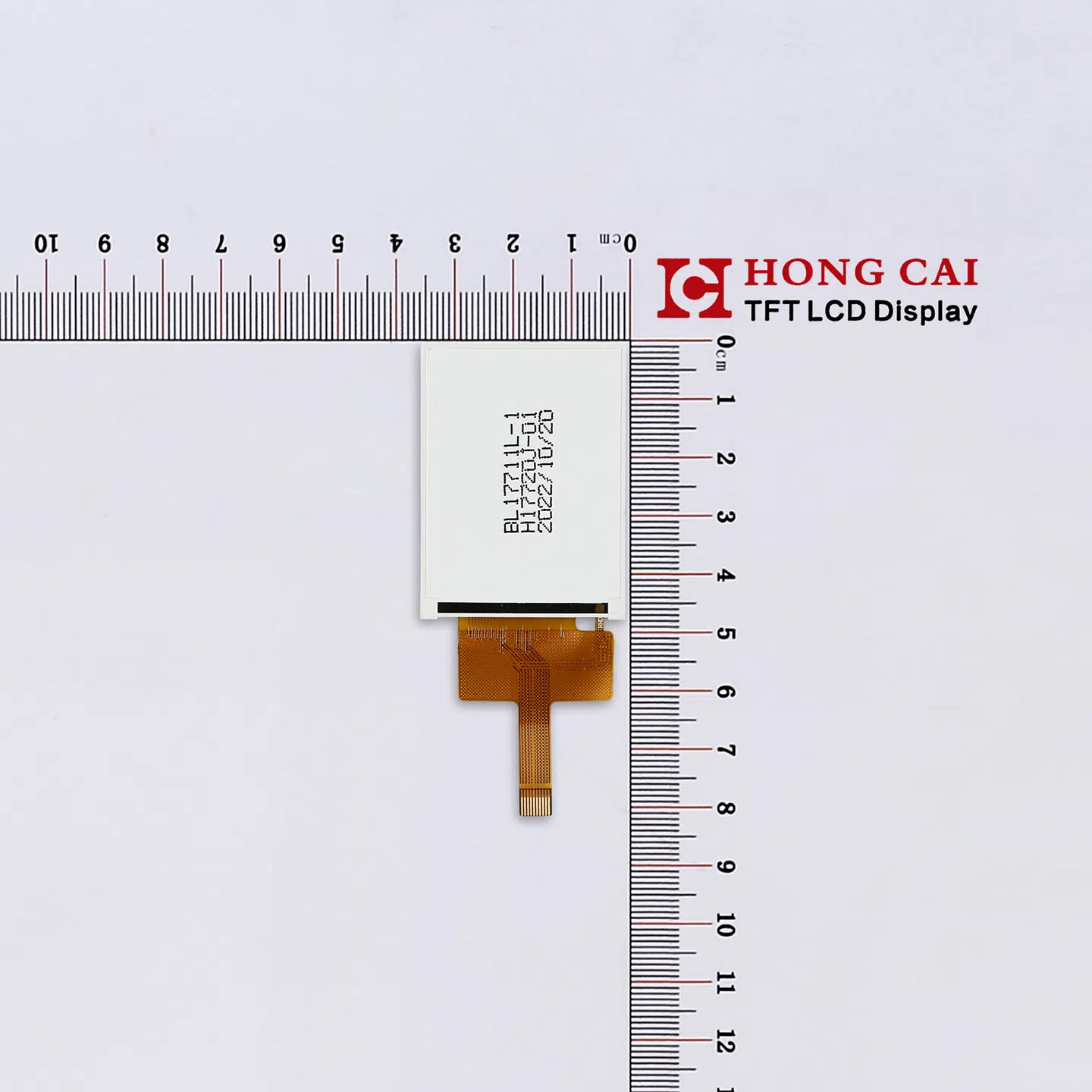

1.77-inch SPI LCD display - Image 2

      128×160 LCD 1.77″



  • Size: 1.77
  • Resolution: 128×160 dots
  • Viewing angle: 12 O'clock
  • Interface type: SPI
  • Driver chip: ST7735S
  • Touch mode: RTP/CTP
  • Backlight brightness: 380 cd/m²
  • Dimensions: 34.00 (W) × 45.83 (H) × 2.35 (T)
Get a quote
Online inquiry

Search LCD screen

Basic parameters

The 1.77-inch SPI LCD display, driven by the ST7735S chip, delivers exceptional display quality. With a resolution of 128×160 and SPI communication, it clearly presents images and text. The display boasts a brightness of 380 cd/m², ensuring optimal viewing from directly above.

Item

ContentsUnit
Size1.77inch
LCM Dimension34.00（W）×45.83（H）×2.35(T)mm
LCD Active Area28.03 × 35.04mm
Number Of Dots128 × 160pixel
Viewing Direction12 O'clock
Driver ICST7735S
Interface TypeSPI
Backlight type3 LEDs
 Luminance300cd/m²

Plan

Interface

NO.symbolDescription
1LEDABACKLIGHT ANODE
2LEDKBACKLIGHT CATHODE
3SPI4W(VCC)POWER SUPPLY
4VCCPOWER SUPPLY
5GNDGrounds
6CSChip Select
7RESETReset pin
8SDASerial Data Input
9SCLSerial Clock
10D / CDestination register selection.


FAQ

Our MOQ is quite flexible. Small-sized semi-custom TFT displays are generally ordered from 100 pieces, and lower quantities can be negotiated for trial production or sampling projects.

  • Mass production or large-volume projectsWhen orders reach a certain scale

  • Project development phase：The customer is adapting the screen driver, interface voltage or software

  • special needs：If you need horizontal screen display, touch solution, etc.

Our sales team is familiar with international trade and the technical specifications of TFT displays. We respond quickly (usually within 2 hours) and confirm every detail using complete technical drawings or physical photos and samples before production.

We can arrange shipping terms such as EXW, FOB, and CIF, and work with your designated freight forwarder.

Whether it's air freight, sea freight, or express delivery, we can ensure fast and safe delivery.

Our MOQ is quite flexible. Medium-sized semi-custom TFT displays are generally ordered from 50 pieces, and lower quantities can be negotiated for trial production or sampling projects.

  • Touch Screen: Capacitive and resistive touch screen, AG, AF, AR, etc.

  • Backlight brightnessIt can meet requirements of over 1000 cd/m². (Minolta color analysis instrument)

  • Industrial and medical：Need to meet specific industry requirements, etc.

Many overseas customers prefer to use agents due to considerations such as communication, quality, and international logistics.

Our team has extensive experience and provides a one-stop service—from design, quotation, production, quality inspection, after-sales service, customs clearance to international shipping. You will get factory-direct prices and the convenience of service.

China, Asia, Europe

LCD Catalog

Standard size
Round display
Bar display
Medium and large size

A. External structure, backlight, and interface FPC.
B. Brightness 1000cd/m², interface type, FPCA can be modified.
C. Customers require customized interface conversion between RGB, SPI, MCU, LVDS, and MIPI.

High-brightness backlight technology (≥1000nits), still clearly visible under sunlight.

A. The viewing angles from top to bottom, left to right are all 60 degrees.
B. IPS full viewing angle, with a viewing angle of 89 degrees on the top, bottom, left, and right.

A. Capacitive touchscreen, AR (anti-reflective), AG (anti-glare), AF (anti-fingerprint), TDM display touchscreen OCA optical integration bonding.

B. Four- or five-wire resistive touchscreen, glossy/matte finish customizable.
