14.5 inch LCD display

      Horizontal LCD bar display



  • Size: 14.5 inches
  • Resolution: 2560 × 3(RGB) × 720
  • Viewing angle: ALL
  • Interface type: LVDS
  • Touch method: INCELL
  • Backlight brightness: 1000
  • Dimensions: 363.50 (W) × 113.5 (H) mm
Get a quote
Online inquiry

LCD Display Search

Basic parameters

The HC-14.5HH6001 is a high-end IPS display with a 145-inch LCD screen, MIPI or LVDS interface, LTPS TFT LCD screen, INCELL touch function, 2560 × 3 (RGB) × 720 resolution, and supports up to 1670 million colors. It is mainly used in automotive displays and medical systems.

Other interfaces of the same size:

Item Contents Unit
LCD size 14.5 inch inch
LCM Dimension 363.50 (W) × 113.5 (H) mm mm
LCD Active Area 354.816 (H) × 99.792 (V) mm
Number Of Dots  2560 × 3(RGB) × 720 pixel
LCD Type LTPS TFT active matrix
Backlight type 48 LEDs
Interface LVDS or MIPI
Pixel arrangement RGB-stripe
Operating Temperature -20℃~ 70℃
Storage Temperature -30℃~ 80℃
Backlight type 42 LEDs
Brightness 1000 cd/m²

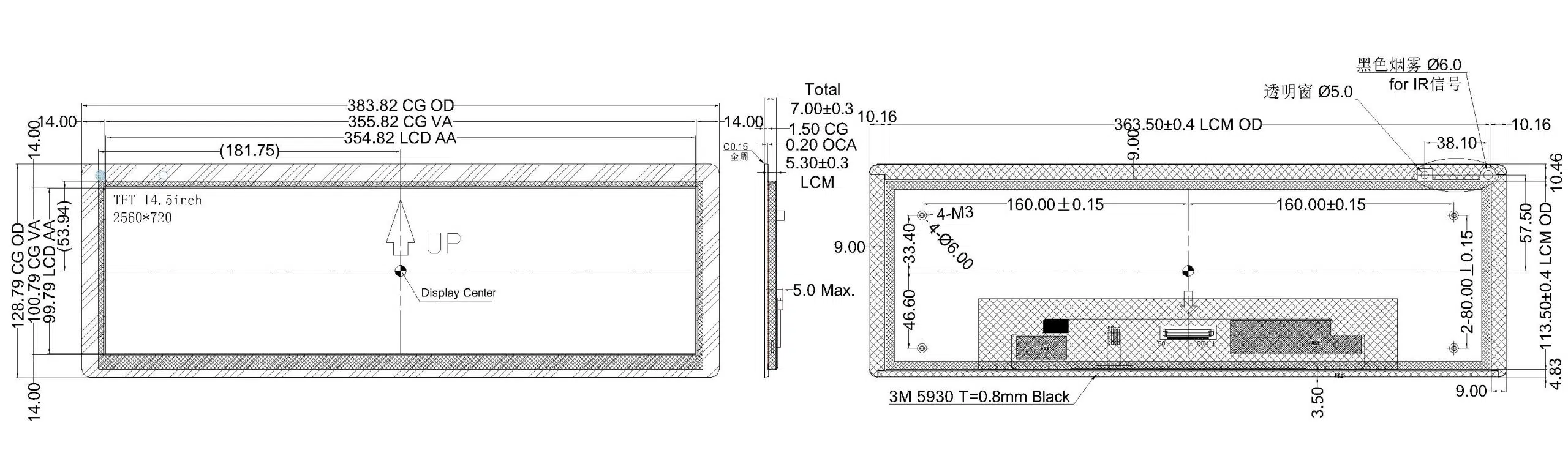

drawing

interface

Pin no. symbol Description
1 GND Power Ground
2 TP_INT Touch I2C interrupt
3 TP_SDA Touch I2C data
4 TP_SCL Touch I2C clock
5 TP_RESET Touch part reset pin
6 GND Power Ground
7 HVR Horizontally and Vertically Inverted
8 GND Power Ground
9 A0 LVDS Data differential signal input pin (A0-)
10 A0 + LVDS Data differential signal input pin (A0+)
11 GND Power Ground
12 A1 LVDS Data differential signal input pin (A1-)
13 A1 + LVDS Data differential signal input pin (A1+)
14 GND Power Ground
15 A2 LVDS Data differential signal input pin (A2-)
16 A2 + LVDS Data differential signal input pin (A2+)
17 GND Power Ground
18 ACLK- LVDS Data differential signal input pin(Negative)
19 ACLK+ LVDS Data differential signal input pin (Positive)
20 GND Power Ground
21 A3 LVDS Data differential signal input pin (A3-)
22 A3 + LVDS Data differential signal input pin (A3+)
23 GND Power Ground
24 E0- LVDS Data differential signal input pin (E0-)


25

 E0 + LVDS Data differential signal input pin (E0+)


26

 GND Power Ground
27 E1- LVDS Data differential signal input pin (E1-)
28 E1 + LVDS Data differential signal input pin (E1+)
29 GND Power Ground
30 E2- LVDS Data differential signal input pin (E2-)
31 E2 + LVDS Data differential signal input pin (E2+)
32 GND Power Ground
33 ECLK- LVDS Data differential signal input pin(Negative)
34 ECLK+ LVDS Data differential signal input pin (Positive)
35 GND Power Ground
36 E3- LVDS Data differential signal input pin (E3-)


37

 E3 + LVDS Data differential signal input pin (E3+)
38 GND Power Ground
39 3V3(650MA) Power supply for the analog circuit
40 3V3(650MA) LCD logic and driver power(3.3V)
41 GND Power Ground
42 STBYB Standby mode setting pin.active low
43 ARE Enable built-in self test (BIST) function
44 RESET Global reset pin
45 LED_A B Power for LED backlight (Anode)
46 LED_A Power for LED backlight (Anode)
47 LED_K Power for LED backlight (Cathode)
48 LED_K Power for LED backlight (Cathode)
49 LED_K Power for LED backlight (Cathode)
50 LED_K Power for LED backlight (Cathode)
