Basic parameters

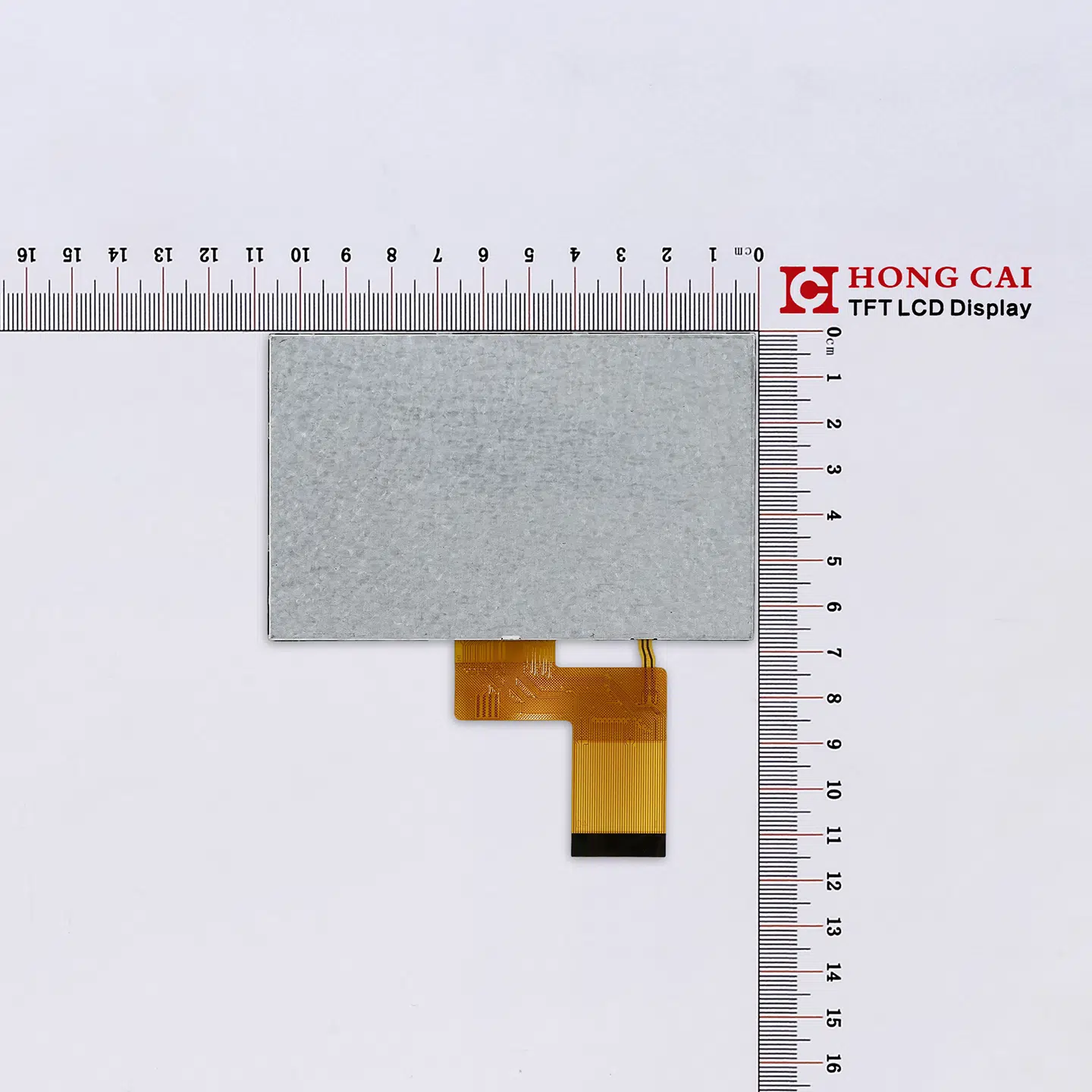

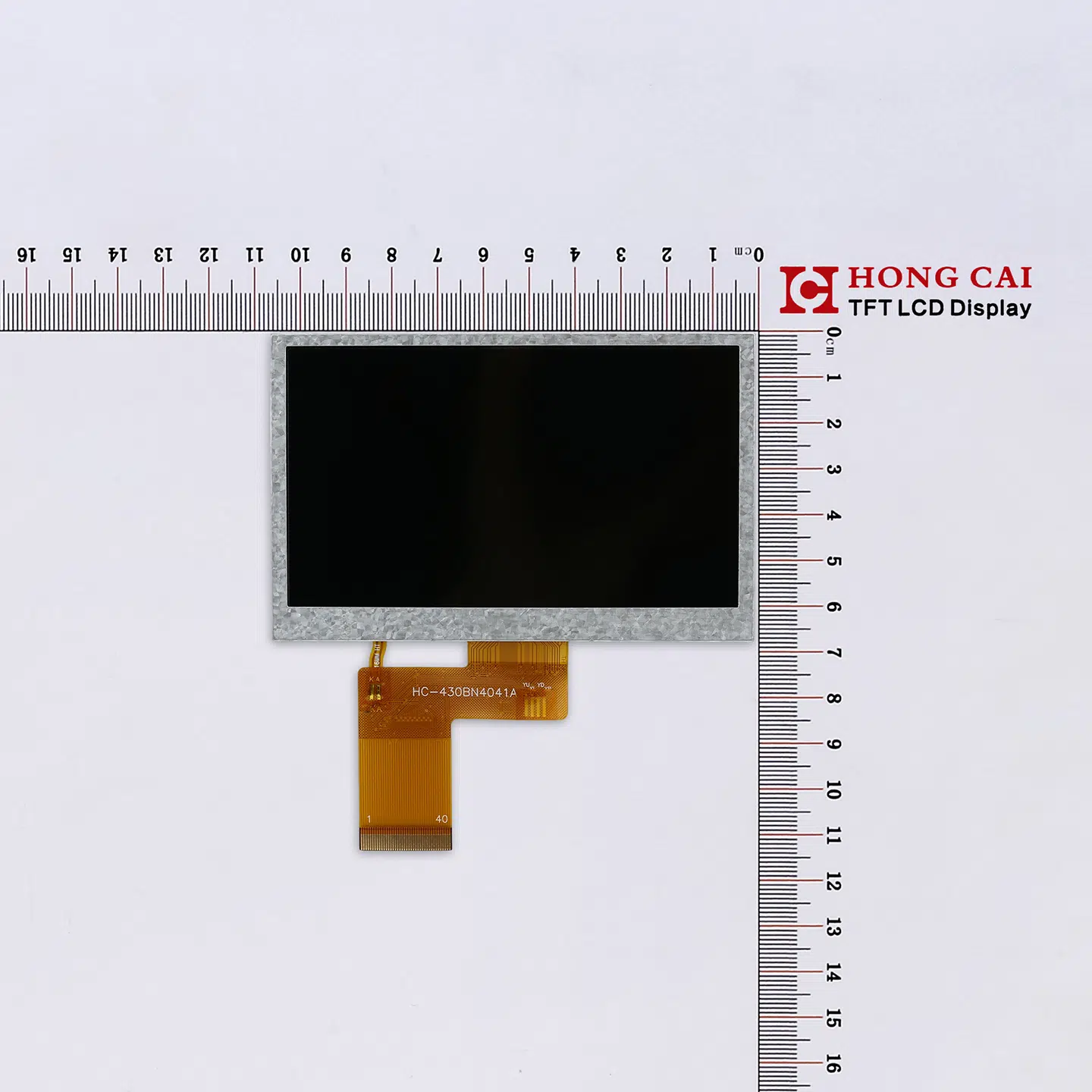

This 4.3-inch LCD features an SPI interface and a resolution of 480×272. Driver chipsets include the ST7282, NV3047, and ILI6485D. It supports 3-wire/4-wire SPI and 8/16-bit MCU 8080 interfaces. TFT panels are available from BOE, INNOLUX, and HSD, providing crisp, clear displays. This 4.3-inch model is standard, offering flexible viewing angle and touchscreen configurations. It offers both normal and full-viewing angle IPS display modes, and can be equipped with either capacitive touchscreens (CTP) or resistive touchscreens (RTP). Hongcai Factory provides a wide range of models for various combinations.
Other interfaces and resolutions of the same size:
| Size | Resolution | Interface | Touch Screen | |
| 4.3 | 480 × 272 | SPI | Capacitors/Resistors | |
| 4.3 | 480 × 272 | RGB | Capacitors/Resistors | |
| 4.3 inches vertical | 480 × 800 | MIPI | capacitance | |
| 4.3 | 800 × 480 | RGB | Capacitors/Resistors |
Basic specifications
| Item | Contents | Unit |
| Size | 4.3 | inch |
| LCM Dimension | 105.5×67.2×3 | mm |
| LCD Active Area | 95.04 × 53.86 | mm |
| Number Of Dots | 480 × 272 | pixel |
| LCD Type | a-Si TFT | |
| Viewing Direction | 12 o'clock or IPS | |
| Driver IC | NV3041A | |
| Interface Type | 4 SPI | |
| Touchscreen | G+G | |
| CTP IC | GT911 |
