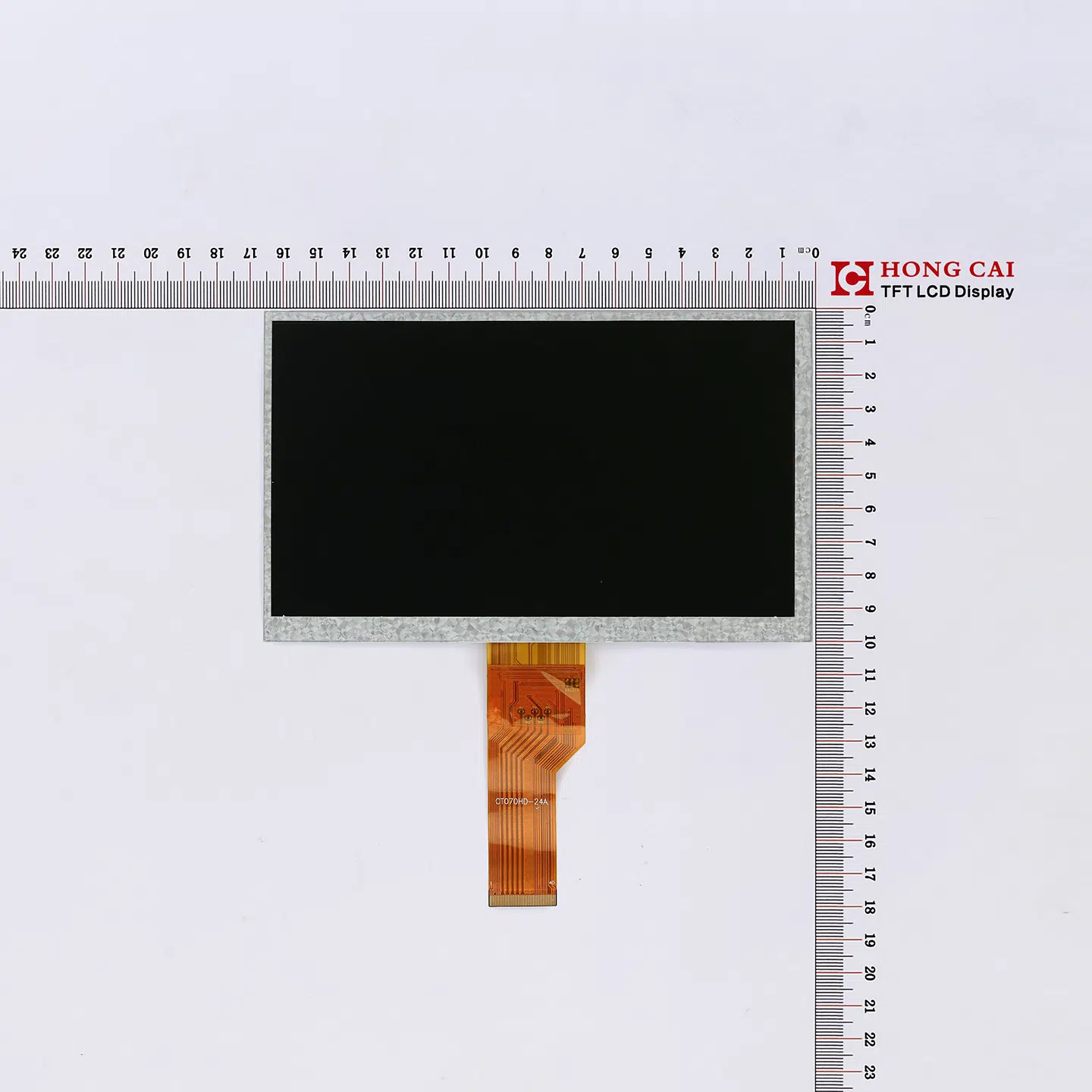

7-inch LVDS LCD display, 1024x600 resolution

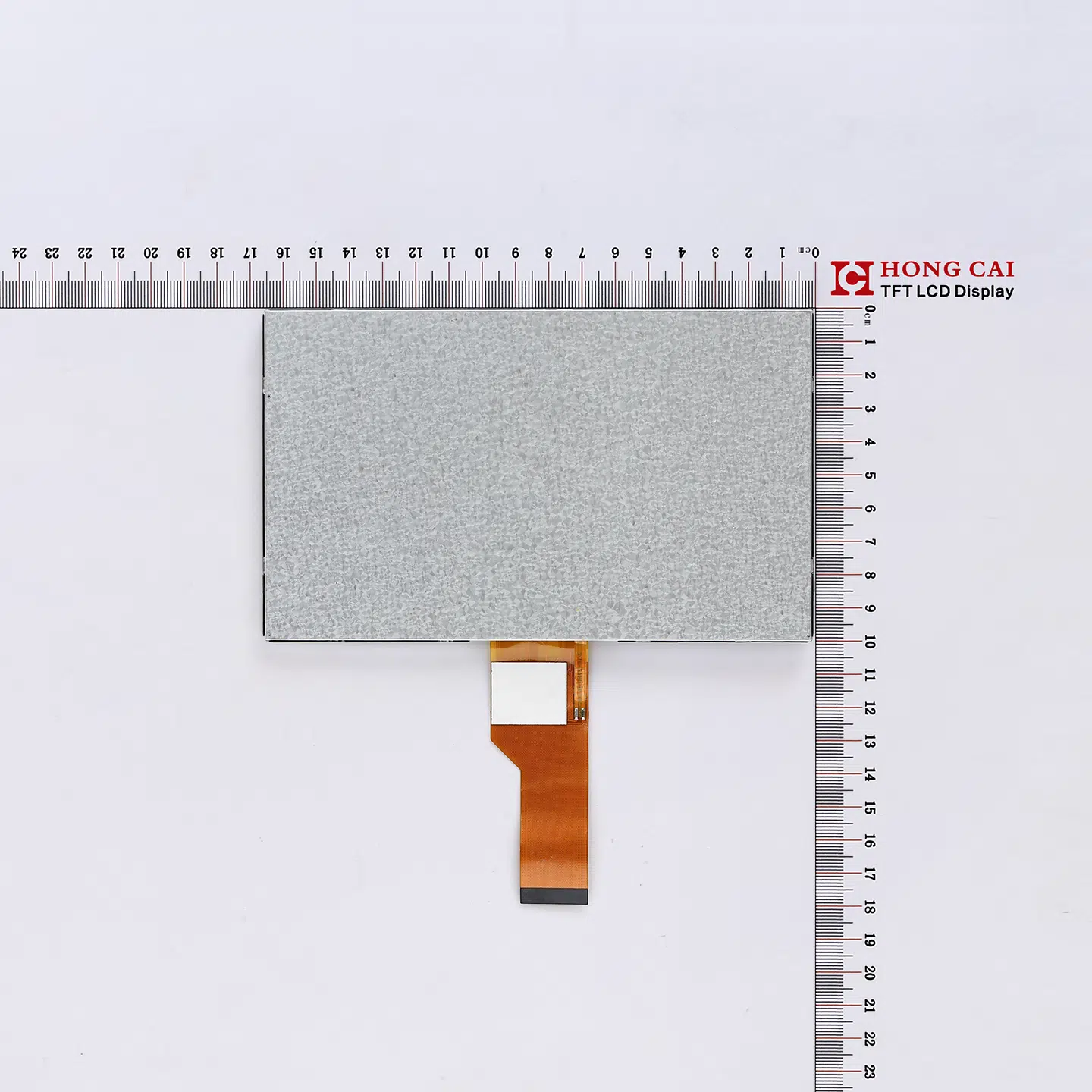

7-inch LVDS LCD display, 1024x600 resolution - Image 2

      7-inch LVDS 1024×600



  • Size: 7
  • Resolution: 1024*600 dots
  • Viewing angle: IPS
  • Interface type: LVDS
  • Driver chip: 2 ICs
  • Touch method: CTP
  • Backlight brightness: 500 cd/m²
  • Dimensions: 164.30 (W) * 97.00 (H) * 2.60 (T) mm
Get a quote
Online inquiry

Search LCD screen

Basic parameters

This 7-inch LVDS LCD display features an 1024×600 resolution, IPS full-viewing angle, and a TFT panel. It is available from BOE and INNOLUX brands, with a standard backlight brightness of 550 cd/m². The TFT LCD screen thickness is available in 2.6mm, 3.5mm, and 5.5mm. It supports RGB, LVDS, and MIPI interfaces. Capacitive and resistive touchscreens are optional.

7-inch size other resolutions and interfaces:

SizeResolutionInterfaceTouch Screen
7.0"1024 × 600MIPICapacitors/ResistorsHorizontal screen
7.0"1024 × 600LVDSCapacitors/ResistorsHorizontal screen
7.0"1024 × 600RGBCapacitors/ResistorsHorizontal screen
7.0"800 × 480RGBCapacitors/ResistorsHorizontal screen
7.0"800 × 1280MIPIcapacitanceVertical

Basic specifications

ItemContentsUnit
Size7inch
LCM Dimension164.90 (W) * 100.00 (H) * 3.5(T)mm
LCD Active Area154.21 × 85.92mm
Number Of Dots1024 × 600pixel
LCD Typea-Si TFT
Viewing DirectionIPS
Driver IC2 IC
Interface TypeLVDS
TouchscreenG+G
CTP ICGT911

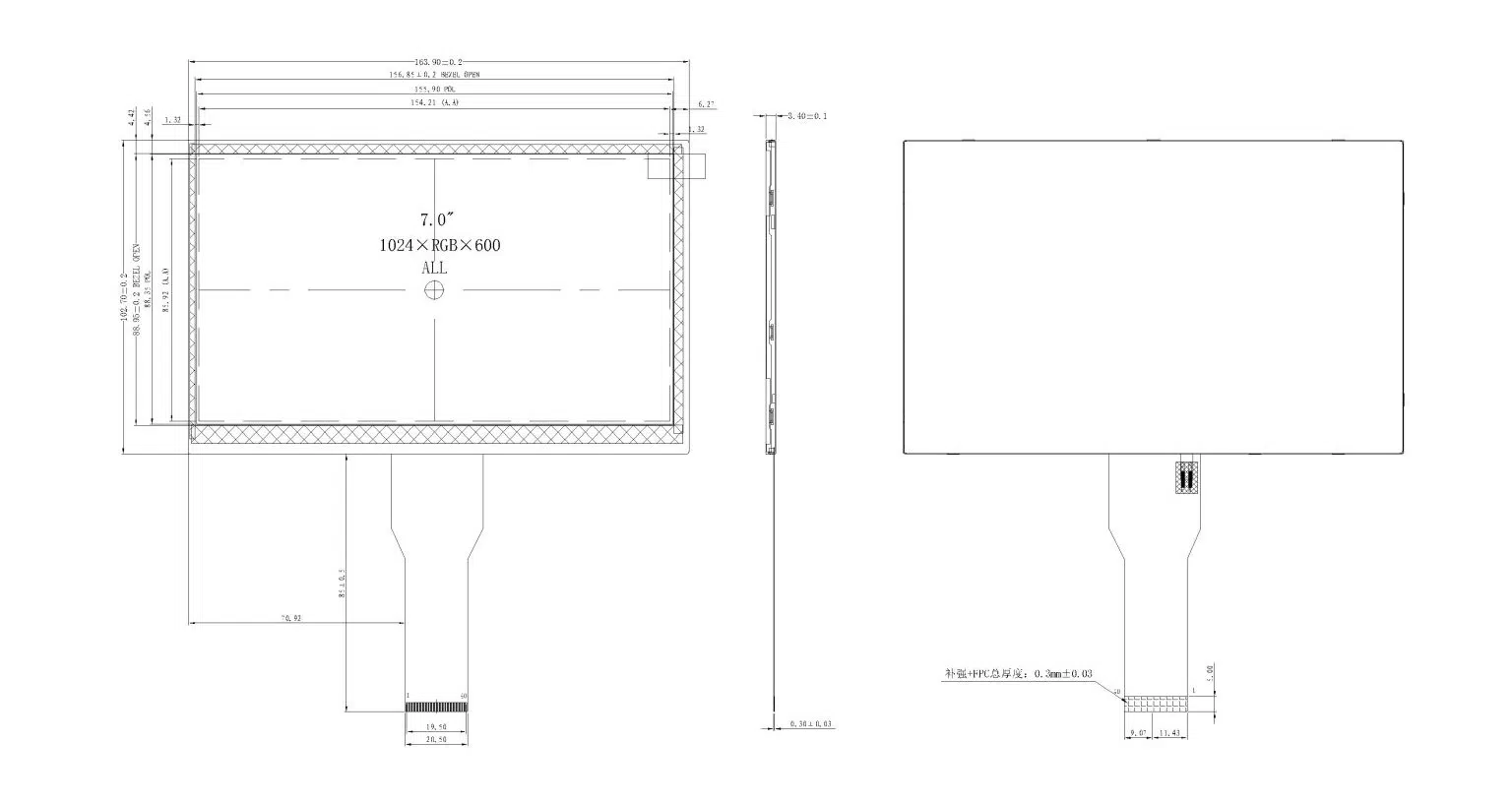

Plan

Interface

LCM

Pin no.symbolFunction
1VCOMPower Supply for the voltage
2.3VDDPower Supply for the analog
4NCNot connected
5RESETGlobal reset pin (3.3V)
6STBYBStandby mode
7GNDGrounds
8RXIN0 --LVDS differential data0 input
9RXIN0++LVDS differential data0 input
10GNDGrounds
11RXIN1 --LVDS differential data1 input
12RXIN1++LVDS differential data1 input
13GNDGrounds
14RXIN2 --LVDS differential data2 input
15RXIN2++LVDS differential data2 input
16GNDGrounds
17RXCLKIN --LVDS differential clock input
18RXCLKIN++LVDS differential clock input
19GNDGrounds
20RXIN3 --LVDS differential data3 input
21RXIN3++LVDS differential data3 input
22GNDGrounds
23 - 24NCNot connected
25GNDGrounds
26 - 27NCNot connected
28SEL36bit/8bit mode select 11:6bit/1:L:8bit
29AVDDA power supply for the analog power
30GNDGrounds
31 - 32LEDLED Cathode
33L / RSource Right or Left sequence control
34U/DGate Up or Down scan control
35VGLGate off Voltage
36 - 37NCNot connected
38VGHGate on voltage
39 - 40LED +LED Anode

CTP

DO NOTPINDescription
1GNDGrounds
2SCLI2C Clock Singal
3SDAI2C Data Singal
4INTInterrupt Singal
5RESETReset Pin For CTP
6NCNot Connect
7VDDPOWER SUPPLY (3.3V)
8NCNot Connect


FAQ

Our MOQ is quite flexible. Small-sized semi-custom TFT displays are generally ordered from 100 pieces, and lower quantities can be negotiated for trial production or sampling projects.

  • Mass production or large-volume projectsWhen orders reach a certain scale

  • Project development phase：The customer is adapting the screen driver, interface voltage or software

  • special needs：If you need horizontal screen display, touch solution, etc.

Our sales team is familiar with international trade and the technical specifications of TFT displays. We respond quickly (usually within 2 hours) and confirm every detail using complete technical drawings or physical photos and samples before production.

We can arrange shipping terms such as EXW, FOB, and CIF, and work with your designated freight forwarder.

Whether it's air freight, sea freight, or express delivery, we can ensure fast and safe delivery.

Our MOQ is quite flexible. Medium-sized semi-custom TFT displays are generally ordered from 50 pieces, and lower quantities can be negotiated for trial production or sampling projects.

  • Touch Screen: Capacitive and resistive touch screen, AG, AF, AR, etc.

  • Backlight brightnessIt can meet requirements of over 1000 cd/m². (Minolta color analysis instrument)

  • Industrial and medical：Need to meet specific industry requirements, etc.

Many overseas customers prefer to use agents due to considerations such as communication, quality, and international logistics.

Our team has extensive experience and provides a one-stop service—from design, quotation, production, quality inspection, after-sales service, customs clearance to international shipping. You will get factory-direct prices and the convenience of service.

China, Asia, Europe

LCD Catalog

Standard size
Round display
Bar display
Medium and large size

A. External structure, backlight, and interface FPC.
B. Brightness 1000cd/m², interface type, FPCA can be modified.
C. Customers require customized interface conversion between RGB, SPI, MCU, LVDS, and MIPI.

High-brightness backlight technology (≥1000nits), still clearly visible under sunlight.

A. The viewing angles from top to bottom, left to right are all 60 degrees.
B. IPS full viewing angle, with a viewing angle of 89 degrees on the top, bottom, left, and right.

A. Capacitive touchscreen, AR (anti-reflective), AG (anti-glare), AF (anti-fingerprint), TDM display touchscreen OCA optical integration bonding.

B. Four- or five-wire resistive touchscreen, glossy/matte finish customizable.
